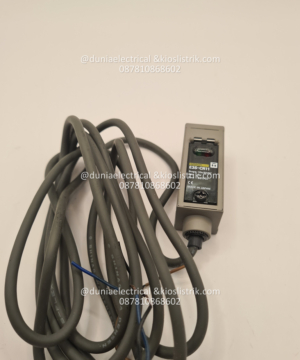

Photoelectric Switch E3S-CR11 Omron

Photoelectric Switch E3S-CR11 Omron

Standard sensing object Opaque: 75 mm dia. min.

Directional angle 3 to 10°

Light source Red LED (660 nm)

Power supply voltage 10 to 30 VDC ripple (p-p) 10% included

Current consumption 40 mA max.

Control output NPN/PNP open collector (selectable)

Operation mode Light-ON/Dark-ON selectable

Protective circuit Output short-circuit protection, Power supply reverse polarity protection

Response time Operate or reset: 1 ms max.

Sensitivity setting Single-turn adjustment

Ambient illumination Incandescent lamp: 5,000 lx max.

Sunlight: 10,000 lx max.

Dielectric strength 1000 VAC 50/60 Hz 1 min

Vibration resistance Destruction: 10 to 2000 Hz, 1.5 mm or 300 m/s2 double amplitude for 0.5 hours each in X, Y, and Z directions

Shock resistance Destruction: 1000 m/s2 3 times each in X, Y and Z directions

Degree of protection IEC: IP67

Company standard: Oil-proof

NEMA: 6P (indoors only)

Connection method Pre-wired models (Cable length 2 m)

Indicator Light indicator (red), Stability indicator (green)

Package Weight: Approx. 160g

Accessories Instruction manual, Mounting bracket (with screws), Adjustment driver, Reflector

Case Material: Zinc diecast

Lens: Methacrylate resin

Cover: Polyether sulfone

Mounting Bracket: Stainless steel (SUS304)

Kioslistrik menyediakan Photoelectric Switch Murah seperti Photoelectric Switch E3S-CR11 Omron 30 Vdc serta Photoelectric Switch Omron type lainnya, Photoelectric Switch E3Z-R86 Omron, Photoelectric Sensor E3X-NA11 Omron, Photoelectric Sensor E3X-NA21 Omron, Proximity Switch Omron, Timer Omron, Counter Omron.
